AFI 1000 Waterproof Wiper Motor Shaft Kit

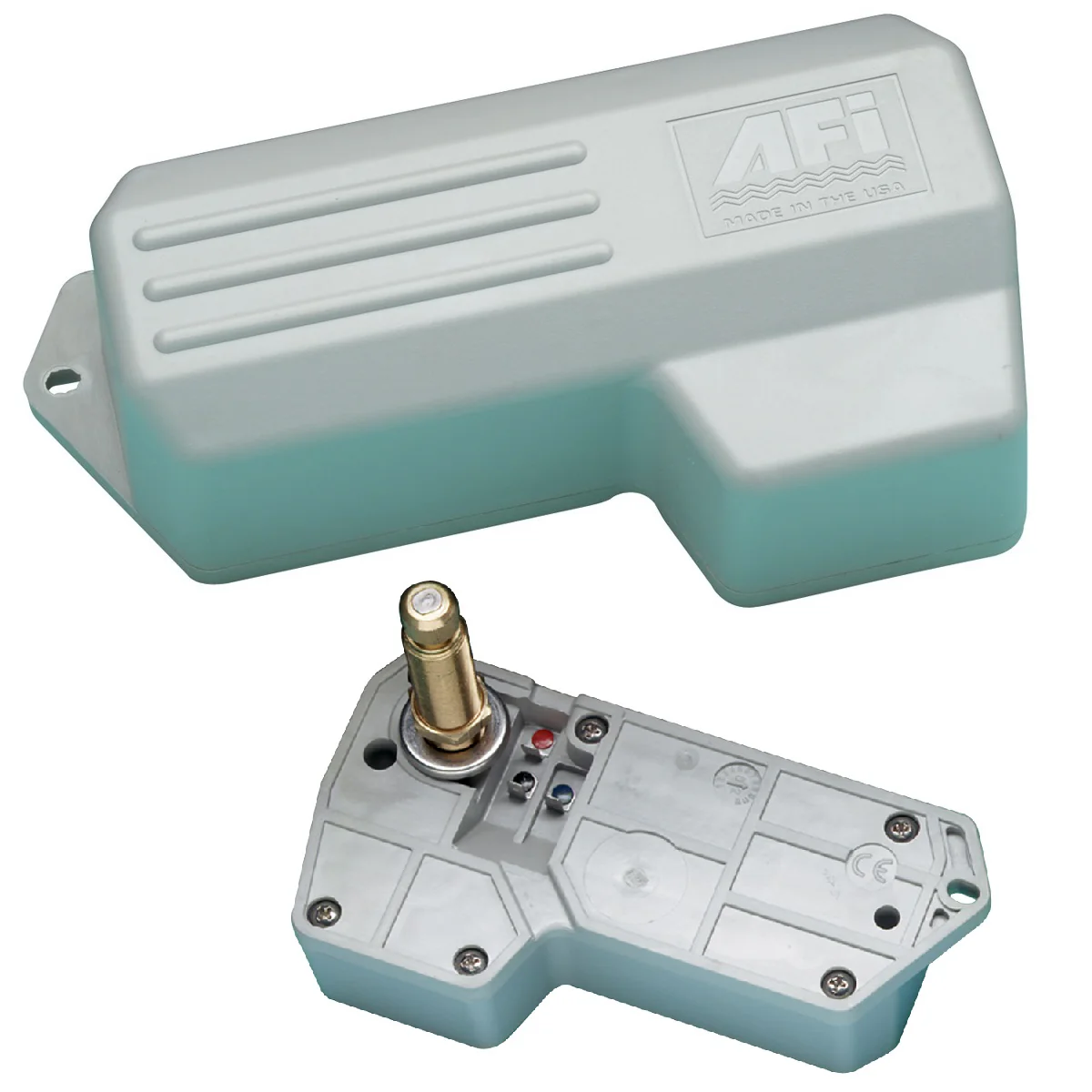

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80° or less. You can also run a 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110°. It's your choice!
- Factory pre-set sweep of 80° or 110° adjustable to 50°, 65°, 80° or 110°
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Includes 5 amp fuse and holder (on/off switch and wiring Not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Approximate Diameters: 6-5/8" L x 3-3/8" W x 2" H
- Stall Torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8–10.0 amps
- No load current: 0.8–1.2 amps
- DC Voltage: 12
$121.10
Original: $345.99
-65%AFI 1000 Waterproof Wiper Motor Shaft Kit—
$345.99
$121.10Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80° or less. You can also run a 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110°. It's your choice!
- Factory pre-set sweep of 80° or 110° adjustable to 50°, 65°, 80° or 110°
- 0.625" diameter shaft (16 mm)
- 12 volt heavy-duty motor with anti-rotation drive shaft
- Knurled drive shaft and solid brass arm drive nut
- Coast to park with adjustable right or left self parking
- Includes 5 amp fuse and holder (on/off switch and wiring Not included)
- RF shielded circuitry
- Weight: 1.75 lbs
- Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
- Approximate Diameters: 6-5/8" L x 3-3/8" W x 2" H
- Stall Torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
- Stall current: 9.8–10.0 amps
- No load current: 0.8–1.2 amps
- DC Voltage: 12
